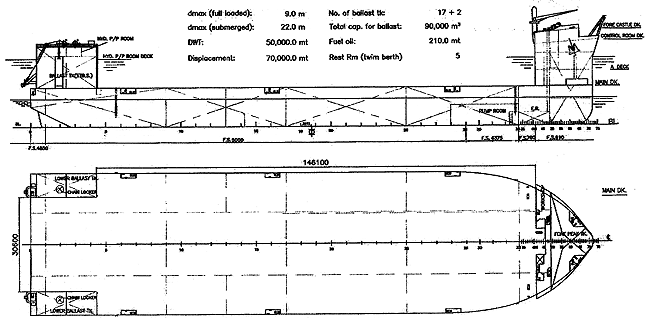

ZHONG REN 3
SEMI SUBMERSIBLE BARGE


PRINCIPAL PARTICULAR
Year Built 2000
Classification CCS
Port of Registry Shanghai
Length Overall 196.0 m
Length B.P. 187.0 m
Breadth Molded 46.0 m
Depth Molded 12.7 m
Full Load Draft 9.0 m
Freeboard (Summer) 3.7 m
Draft (Summer) 9.0 m
Max. Submerged Draft 22 m
Max. Submersion 9.3 m above main deck
Deadweight 50,000t
Displacement 70,000t
Stern Pontoon (Detachable) 2
Cargo Deck Area 168 x 46 m
Deck Loading (Uniform) 15 t/m2
No. of Ballast tk 17 + 2
Free Deck Area 7,700 m2 (caissons to be removed)
  7,400 m2 (caissons remains)
Ballast Tanks 19 nos
Fuel Storage Capacity 300t
Ballast Pumps 2 sets at 5,200 m3/hr
  2 sets at 2,800 m3/hr
Ballast Tanks Capacity 90,000 m3
Fuel Oil 210t
Generators 3x 1,000 kw
  1x 250 kw
Winches 6 sets hydraulic; 1 set electric anchor/marine winches
Rest Room (Twin Berth) 5
