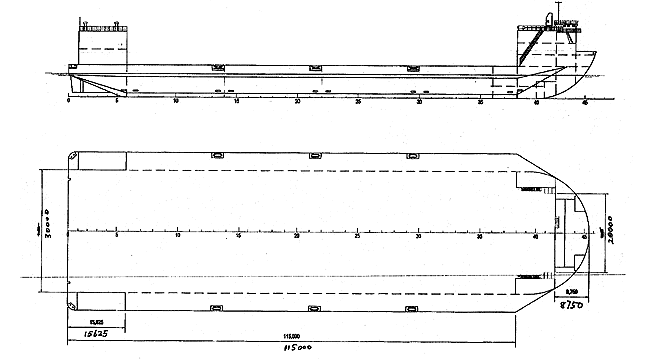

ZHONG REN 2
17,000 DWT SUBMERSIBLE BARGE


PRINCIPAL PARTICULAR
Year Built 1980, Holland
Classification CCS
Port of Registry Liberia
Length Overall 135.0 m (443 ft)
Length B.P. 132.5 m (435 ft)
Breadth Molded 40 m (131.2 ft)
Depth Molded 8.0 m (26 ft)
Design Draft 6.0 m (19.7 ft)
Freeboard (Summer) 2.021 m (6.63 ft)
Displacement 22,300 kt
Max. Submerged Draft 14.5 m (47.5 ft)
Max. Submersion 6.5 m (21.5 ft) above main deck
GRT 9940.63
NRT 7326.46
Deadweight 17,000 tons
Deck Load 15 tons/m2
Free Deck Area 116 x 40 m (4640 m2)
Watertight Compartments 28 nos
Ballast Tanks 24 nos
Fuel Storage Capacity 1,600 m3 for towing tug
KO/RO Rumps at Stern 2x 4.4 m wide, outrench 9.6 m
Ballast Pumps 2x 16,000 m/hr, 2 x1,000 m/hr
Fuel Pumps 2x 65 m/hr
Generators 3x 175 kw, 440V 60Hz
  1x 39 kw, 440V 60Hz
Winches 4 independent hydraulic anchor/marine winches
