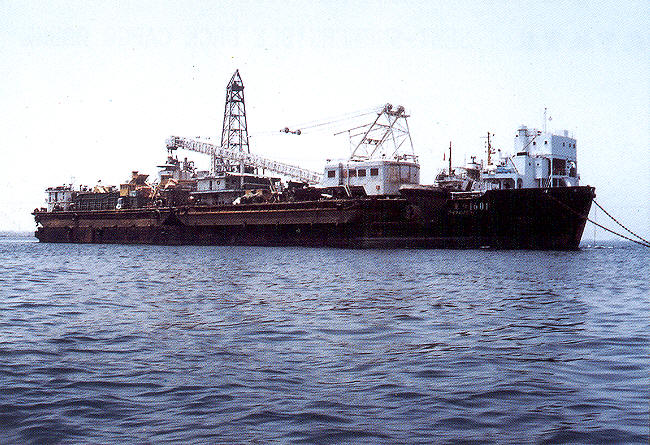

ZHONG REN 1601 |
|
SEMI-SUBMERSIBLE DECK CARGO BARGE |
| |
|
 |
|
|
|
|
PRINCIPAL PARTICULAR |
|
|
Classification |
NK NS*PONTOON |
|
Trading Limitation |
Ocean Going |
|
Where Built |
Japan |
|
Year Built |
1977 |
|
Port of Registry |
Liberia |
|
Length O.A. |
121.636 m |
|
Length B.P. IWC Replica Watches
|
115.35 m |
|
readth Molded |
31.60 m |
|
Depth Molded |
7.70 m |
|
Depth (Semi-submerged)(Water level to deck) |
5.50 m |
|
Full Load Draft |
6.07 m |
|
Light Draft |
1.669 m |
|
F/L Displacement |
19477 MT |
|
Light Displacement |
3318 MT |
|
Gross Tonnage |
7375 MT |
|
Net Tonnage |
2212 MT |
|
Deadweight |
16159 MT |
|
Deck Load |
10 ton/m2 |
|

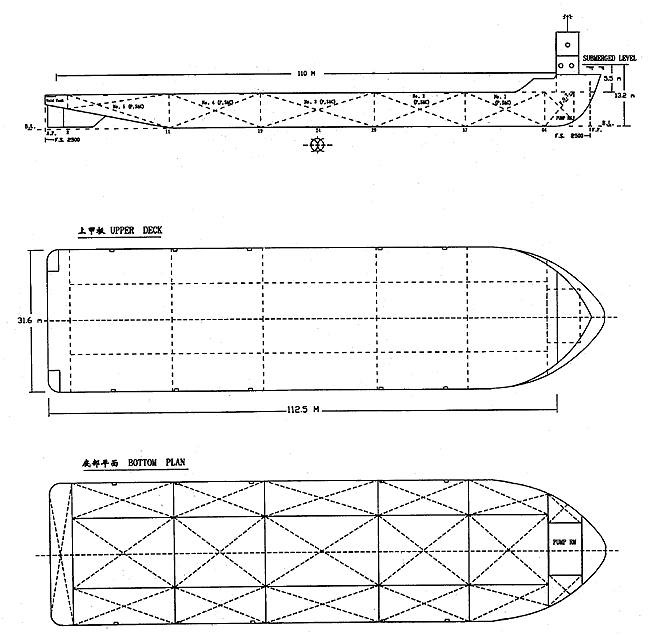

Deck Space |
3318 m2 (105 x
31.6) |
|
|
|
|
MACHINERY EQUIPMENT |
|
|
Diesel Generator |
1x 115kVA 440V 60Hz f 3 |
|
|
1x 18.75kVA 220V 60Hz f 3 |
|
Windlass |
1x 17.0t x 9 m/min (E. Hyd.) |
|
Anchor |
5.419 MT |
|
Spare Anchor |
5.419 MT |
|
Steering gear |
5T x 2(E.) |
|
Water Ballast Pump |
2x 800 m3/hr
(Diesel engine) |
|
|
2x 400 m3/hr
(Electro) |
|
Stripping Pump |
1x 110 m3/hr |
|
Derrick Crane |
1 set (4 m x 1.5 MT) |
|
|
|
|
TANK CAPACITY |
|
|
Fuel Oil |
219.6 m3 |
|
Fresh Water |
200 m3 |
|
Ballast Water |
23098 m3 |
