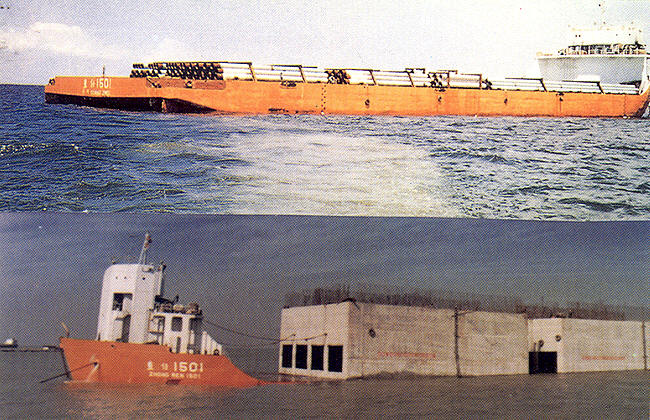

ZHONG REN 1501 |
|
SEMI-SUBMERSIBLE DECK CARGO BARGE |
| |
|
 |
|
|
|
|
PRINCIPAL PARTICULAR |
|
|
Classification |
* CSA5/5 Submersible Deck Barge |
|
Year Built |
1978 Replica Rolex Daytona Watches
|
|
Where Built |
Japan |
|
Port of Registry |
Guangzhou |
|
Length O.A. |
122.45 m |
|
Length B.P. |
119.95 m |
|
Breadth Molded |
30.5 m |
|
Depth Molded |
7.6 m |
|
Depth (Semi-submerged)(Water level to deck) |
6.4 m |
|
Full Load Draft |
5.96 m |
|
Light Draft |
1.5 m |
|
Gross Tonnage |
7238 t |
|
Net Tonnage |
2171 t |
|
Deadweight |
16679 t |
|
Light Displacement |
3636 t |
|
Full Load Displacement |
18420 t |
|
Deck Load |
9.3 t/m2 |
|
Deck Space |
2974 m2 (97.5 x
30.5) |
|
|
|
|
MACHINERY & EQUIPMENT |
|
|
Diesel Generator |
1x 180kw AC 450V 60Hz |
|
|
2x 50kw AC 450V 60Hz |
|
|
1x 1kw AC 100V 60Hz |
|
Hyd. Windlass/Mooring Winch |
2x 20t x 10 m/min |
|
Hyd. Capstan |
2x 5t x 10 m/min |
|
Hyd. Oil Pump |
1x 90kw x 50-60 kg/cm2 |
|
Anchor |
2x 3060 kg |
|
Spare Anchor |
2x 1000 kg |
|
Water Ballast Pump |
2x 3000 m3/h |
|
Stripping Pump |
1x 200 m3/h |
|
|
|
|
TANK CAPACITY Replica Rolex Explorer
|
|
|
Ballast Water |
21176.8 m3 |
|
Fresh Water |
53.1 m3 |
|
Fuel Oil |
593.6 m3 |
|
|
|
|
CAPACITY |
|
|

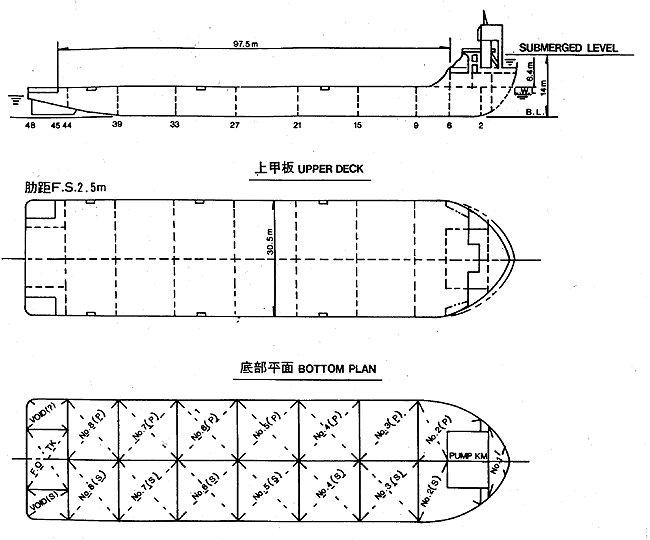

Water Ballast Tank No. 1 |
168.6 m3 |
|
Water Ballast Tank No. 2 |
P.S. 2x 919.6 m3 |
|
Water Ballast Tank No. 3 |
P.S. 2x 1674.6 m3 |
|
Water Ballast Tank No. 4, 5, 6, 7 |
P.S. 8x 1687.4 m3 |
|
Water Ballast Tank No. 8 |
P.S. 2x 1164.5 m3 |
|
Void Tank |
P.S. 2x 226.1 m3 |
|
Fuel Oil Tank |
(Aft.) 540.5 m3 |
|
|
(Fcl.P.) 53.1 m3 |
|
Fresh Water Tank |
(Fcl.S.) 53.1 m3 |
