FLOATING CRANE ZHI FU DAO |
|
|
|
|
|
|
PRINCIPAL PARTICULARS |
|
|
|
|
Year Built |
1988 |
|
|
|
Port of Registry |
Yantai, P.R. China |
|
|
|
Length O.A. |
109.00 m |
|
|
|
Length B.P. |
100.00 m |
|
|
|
Breadth Molded |
27.00 m |
|
|
|
Depth Molded |
7.20 m |
|
|
|
Draft Designed |
4.20 m |
|
|
|
Gross Tonnage |
6222t |
|
|
|
Net Tonnage |
1866t |
|
|
|
Full Load Displacement |
10875t |
|
|
|
Diesel Oil |
100 m3 |
|
|
|
Fuel Oil |
416 m3 |
|
|
|
Fresh Water |
1744 m3 |
|
|
|
Accommodation |
140 |
|
|
|
Endurance |
45d |
|
|
|
Deck Loading Space |
1000 m2 |
|
|
|
Deadweight |
2000t |
|
|
| |
|
|
|
 |
| |
|
|
|
|

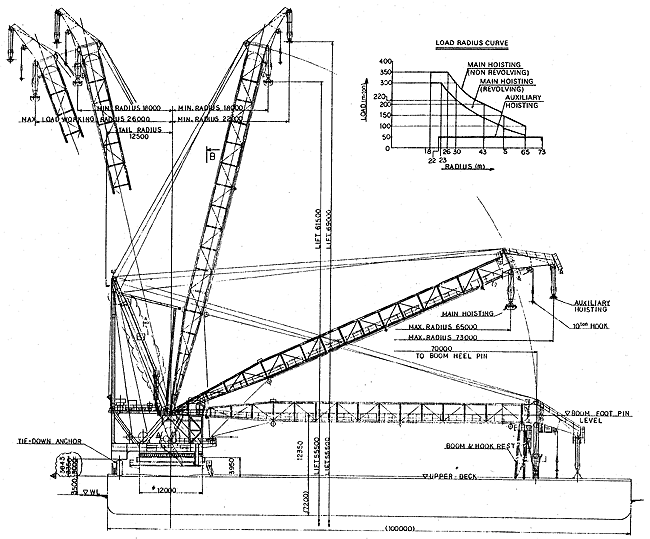

CRANE |
|
|
|
|
|
Main Hook |
Auxiliary Hook |
Whip |
|
Type of Hook |
Single |
Single |
Single |
|
Load |
350t (fixed at aft) |
50t |
10t |
|
|
300t (360° revolving) |
|
|
|
Working Radius |
350t, 18 - 26 m (fixed at aft) |
18 - 73 m |
18 - 70 m |
|
|
300t, 18 - 23 m (360° revolving) |
|
|
|
Lifting Height (to main deck) |
73.5 m |
81 m |
75 m |
|
Lifting Speed |
350t, 3.6 m/min |
50t, 15 m/min |
|
|
|
200t, 6.0 m/min |
18t, 35.7 m/min |
|
|
|
100t, 10 m/min |
|
|
|
|
|
|
|
|
DECK MACHINERY |
|
|
|
|
Windlass |
2 sets |
|
|
|
Weight of Anchor |
4.5t |
|
|
|
Winch |
8 x 25t |
|
|
|
Mooring Capstan |
4 x 16t |
|
|
|
Weight of Working anchor |
6t |
|
|
|
Line Length |
500 - 1000 m |
|
|
|
Small Crane |
1 x 16t |
|
|
|
|
|
|
|
|
GENERATOR |
3 x 520KW, 50Hz, 400V AC |
|
|
|
|
1 x 276KW, 50Hz, 400V AC |
|
|
|
|
|
|
|
|
OTHERS |
Advanced diving and underwater working equipments |
