M/V YONG SHI
PRINCIPAL PARTICULAR
Name of Vessel	Yong Shi
Port of Registry	Shanghai, China
Year Built	1977
Where Built	Sevaetopol, USSR
Classification	CCS
Length	80.40 m
Breadth	25.40 m
Depth	7.75 m
Draft	4.31 m (in voyage)
	7.71 m (in full loading)
Gross Tonnage	3915.16 T
Net Tonnage	863.41 T
Number of Deck	1
Number of Masts	n/a
Number of Funnels	1
Type of Vessel	Floating Crane
Horse Power	3000kw
Max. Speed	9.5 knots
Generator	4x 1000kw/380V/50Hz
Accommodation	28 persons
CRANE
Main Hook	2x 500T (Radius 11 m - 12 m)
	2x 150T (Max. radius 22 m)
Auxiliary Hook	1x 250T (Radius 24 m - 25.5 m)
	1x 200T (Max. radius 36.5 m)
Whip	1x 10T

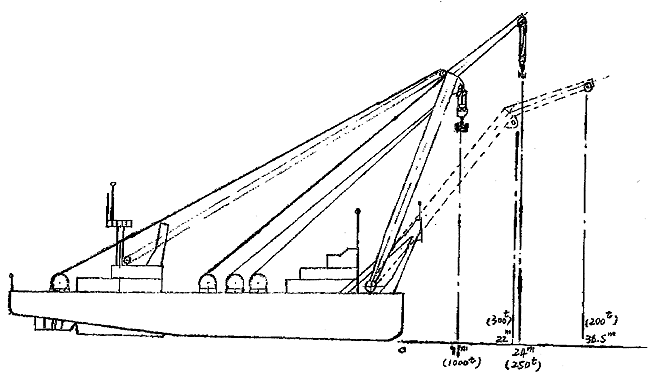

CRANE
MAIN HOOK		2x 500T (Radius 11 m - 12 m)
		2x 150T (Max. Radius 22 m)
Angle	67.5	66	63	60	55	50
Radius	11 m	12 m	14 m	16 m	19 m	22 m
Weight	2x 500T	2x 500T	2x 400T	2x 250T	2x 200T	2x 150T
Height		35.5 m	34 m	27 m	25 m	23 m
AUXILIARY HOOK		1x 250T (Radius 24 m - 25.5 m)
		1x 200T (Max. Radius 36.5 m)
Angle	67.5	64.5	63	60	55	50
Radius	24 m	25.5 m	27 m	29.5 m	33.3 m	36.5 m
Weight	250T	250T	244.8T	234.5T	217.2T	200T
WHIP		1x 10T
