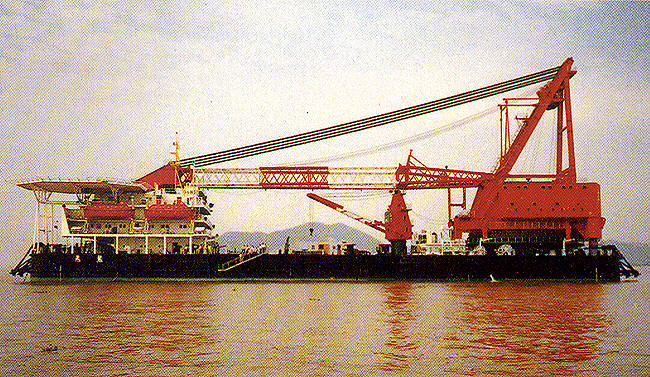

| NAN TIAN LONG | |
| 900T LIFTING CAPACITY | |
| FULLY REVOLVING FLOATING CRANE | |
|
|
|
| PRINCIPAL PARTICULAR | |
| Year Built | 1992 |
| Classification | *ZCA |
| Length O.A. | 100.00 m |
| Breadth Molded | 30.00 m |
| Depth Molded | 8.00 m |
| Full Load Draft | 4.10 m |
| Gross Tonnage Replica Breitling Watches | 8326 |
| Net Tonnage | 2497 |
| Accommodation | 125 persons |
| Speed | 3 kn |
| MACHINERY & EQUIPMENT | |
| Diesel Generator | 2x AC 760kw |
| 2x AC 230kw | |
| 1x AC 90kw | |
| Mooring Equipment | 8 point mooring system |
| Diving Equipment | Air diving system |
| 1x Remote control vehicle | |
| Propeller | "Z" Full revolving type (3x 400kw) |
| Compressor | 3x 20 m3/min x 0.8 mpa |
| 2x 4m3/min x 2 mpa | |
| Welding Equipment | 6x DC 500A |
| CRANE | |
| Main Hoist Capacity | 2x 450t (Fixed) |
| 1x 450t (Rev.) | |
| Main Lifting Height | Above Level: 65 m |
| Below Level: 5 m | |
| Aux. Hoist Capacity | 1x 150t |
| Aux. Lifting Height | Above Level: 75 m |
| Below Level: 100 m | |
| Whip Hoist Capacity | 1x 25t |
| Whip Lifting Height | Above Level: 80 m |
| Deck Crane Capacity | 1set x 16t x 19m |
| TANK CAPACITY | |
| Fuel Oil | 568 m3 |
| Fresh Water | 974 m3 |
| Ballast Water | 3,635 m3 |

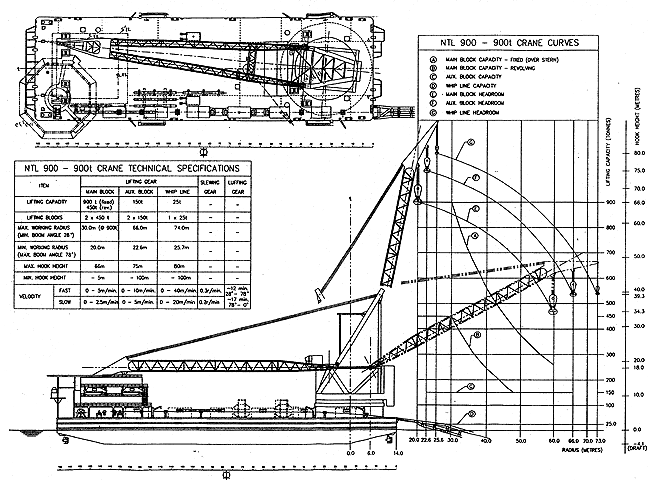

| CRANE TECHNICAL SPECIFICATIONS | ||||||
| Item | Lifting Gear Replica Rolex Milgauss | Slewing Gear | Luffing Gear | |||
| Main Block | Aux. Block | Whip Line | ||||

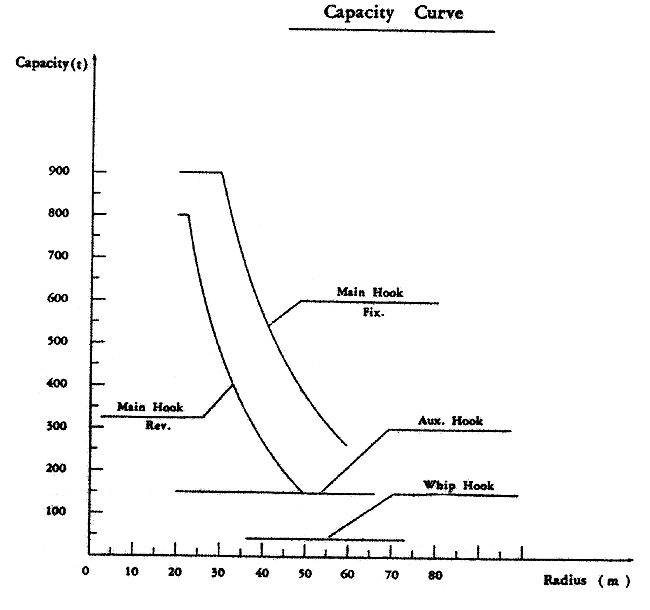

| Lifting Capacity | 900t (fixed) | 150t | 25t | - | - | |
| 450t (rev.) | ||||||
| Lifting Blocks | 2 x 450t | 2 x 150t | 1 x 25t | - | - | |
| Max. Working Radius | 30.0 m (@ 900t) | 66.0 m | 74.0 m | - | - | |
| (Min. Boom Angle 28?) | ||||||
| Min. Working Radius | 20 m | 22.6 m | 25.7 m | - | - | |
| (Max. Boom Angle 78?) | ||||||
| Max. Hook Height | 66 m | 75 m | 80 m | - | - | |
| Min. Hook Height | -5 m | -100 m | -100 m | - | - | |
| Velocity | Fast | 0 - 5 m/min | 0 - 10 m/min | 0 - 40 m/min | 0.3 r/min | ~12 min. 28? - 78? |
| Slow | 0 - 2.5 m/min | 0 - 5 m/min | 0 - 20 m/min | 0.2 r/min | ~17 min. 78? - 0? | |
