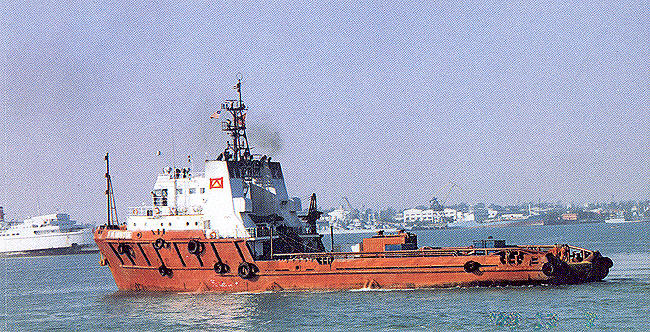

M/V HUA YUE |
|
6,000BHP AHTS |
| |
|
 |
|
|
|
|
REGISTRATION |
|
|
Flag: |
Liberia |
|
Home Port: |
Monrovia |
|
Builder: |
Hu Dong Shipyard, Shanghai |
|
Year Built: |
Oct-84 |
|
Classification: |
H CSA 5/5 Tug/Supply Vessel H CSM AUT-O |
|
Call Sign: |
E L P W 3 |
|
Inmarsat-C Terminal ID No.: |
463668850, Anwserback: HYUE |
|
Hull Number: |
1145 |
|
Sailing Area: |
World-wide |
|
Official Number: |
9882 |
|
|
|
|
DIMENSIONS |
|
|
Length Overall: |
60.85 M |
|
Length (PP): |
54.00 M |
|
Breadth Moulded: |
13.00 M |
|
Depth Moulded: |
6.20 M |
|
Draft Loaded: |
5.06 M (Summer Draft) |
|
Draft Light: |
3.12 M |
|
Freeboard: |
1.14 M (In Summer Draft) |
|
|
|
|
TONNAGE |
|
|
Disp. Load: |
2499 Tons |
|
Disp. Light: |
1336 Tons |
|
Gross Tonnage: |
1252 Tons |
|
Net Tonnage: |
375 Tons |
|
Dead Weight: |
1164 Tons |
|
Light Weight: |
1325 Tons |
|
|
|
|
DECK CAPACITIES |
|
|
Deck Area (Clear): |
30 M x 10 M |
|
Crash Rail: |
1.80 M |
|
Deck Cargo: |
500 Tones |
|
Deck Strength: |
5 T/M2 |
|
|
|
|
DECK EQUIPMENT |
|
|
Anchor: |
3 x 1440KG Stockless HHP |
|
Anchor Chain: |
Dia.36MM, U2 450M |
|
Windlass: |
Norwinch AV39/44 - 36V2/2T |
|
Tugger: |
2 Sets: Norwinch LV-10 SPEC |
|
Capstan: |
2 Sets: Norwinch C-9, Hauling Capacity: 10 T |
|
Hyd. Crane: |
Elect. Crane, 1.5 Tons x 7.0M |
|
|
|
|
TANK CAPACITY |
|
|
Fuel: |
547 M3 |
|
P. Water: |
234 M3 |
|
D. Water: |
525.4 M3 |
|
Lub Oil: |
17.0 M3 |
|
Bulk: |
4 x 42.5 M3,
total: 170 M3 |
|
Liquid Mud: |
Nil |
|
|
|
|
TRANSFER RATES |
|
|
Fuel Oil: |
100 M3/hr |
|
P. Water: |
100 M3 /hr |
|
D. Water: |
100 M3 /hr |
|
Bulk: |
80 p.s.i, about 80 T/hr |
|
Liquid Mud: |
N/A |
|
|
|
|
MACHINERY |
|
|
Main Engine: |
4 Sets, M.A.N. 12V 20-27 Diesel Engines |
|
Horse Power: |
4 x 1,500BHP, Total 6,000BHP |
|
Bollard Pull: |
52 Tons |
|
Propeller: |
2 CPP Propellers in Kort Nozzles |
|
Auxiliary: |
2 Sets: M.A.N.- 38W 5L-20/27 563HP |
|
Generator: |
2 x 245KW, 440V/60 HZ/3 Phase (Diesel) |
|
|
2 x 245KW, 440V/60 HZ/3 Phase (Saft) |
|
|
Total: 980 KW |
|
Thrusters: |
1 Bow Thruster: 1 x 564 HP, 6.25 Tons |
|
Control: |
C.P.P. |
|
|
|
|
SPEED & CONSUMPTION |
|
|
Maximum: |
14.5 knots 18 Tons/day |
|
Economical: |
12.0 Knots 9.8 Tons/day |
|
In Port: |
0.6 Tons/day |
|
|
|
|
TOWING/ANCHOR HANDLING |
|
|
Winch: |
Norwinch 2S-180-2T; water fall type double drum |
|
Tow Line: |
Main Dia. 61mm x 800M / spare Dia. 57mm x 1000M |
|
Anchor Handling Wire: |
Dia. 57MM x 150M |
|
Pennant: |
2 Sets: Dia. 57MM x 20M |
|
Towing Fairlead: |
Nil. |
|
Shackle: |
4 x 85 Tons; 6 x 55 Tons; 8 x 35 Tons |
|
Shark Jaw: |
Standard Karm Fork, SWL: 500 Tons |
|
Towing Pins: |
SWL: 500 Tons |
|
Nylon Stretcher: |
2 x dia. 10" x 50 M |
|
Stern Roller: |
Dia. 2.0 M x 4.8 M |
|
|
|
|
NAVIGATION/COMMUNICATION |
|
|
Gyro Compass: |
Tokyo Keiki Type: ES-11A |
|
Magnetic Compass: |
C-Plath |
|
Auto Pilot: |
Tokyo Keiki Type: PR-2064-E-V2 |
|
Echo Sounder: |
FURUNO FE502 |
|
Radar: |
1 x FURUNO Type: FR-1011 / 3 Kw |
|
|
1 x Racal Deca Type: Bridge Master CA-181 |
|
Direction Finder: |
FURUNO Type: FD120B |
|
Log: |
FURUNO Type: MF-220-2 |
|
Windicator: |
1 Set |
|
Satellite Navigation: |
FUNURO GP-50 |
|
GMDSS: |
SKANTI COMBRIDGE 9500, 500W for A3 Operation. Installed: August 1997. |
|
SSB: |
1 x JSB -410, 400W |
|
VHF: |
2 Sets |
|
Receiver: |
JRC NRD-72 |
|
Portable VHF: |
3 x VHF Marine Radio Model: HX238S(EB) |
|
|
|
|
SAFETY EQUIPMENT |
|
|
Ring Buoy: |
8 |
|
Life Jacket: |
50 |
|
Life Raft: |
4 x 20 persons |
|
Life Boat: |
1 x Rescue boat, 6 persons, engine outboard |
|
FiFi: |
1 fire fighting pump Type: FB2H-250-2 with 600M3/hr capacity |
|
|
2 monitors on top of the bridge |
|
|
Made by: Naniwa Pump MFG. Co. Ltd. |
|
Antipollution: |
2 x Oil dispersant system; 1 boom on each side with 5 spray nozzles |
|
Emergency Radio: |
1 x JSL-5, 50W |
|
Emergency Life Buoy Marker: |
Yes |
|
Radio Distress Transmitter: |
KSNNAD 406FH, France |
|
|
|
|
PROVISION |
|
|
Freezer: |
18 M3 |
|
Refrigerator: |
2 Sets: RSK-5F, 2100Kcal/hr |
|
Births: |
28 with full air conditioning |
|
|
|
|
CONNECTIONS: |
|
|
Fuel: |
WECO Couplings 4" |
|
Water: |
WECO Couplings 4" |
|
Bulk: |
WECO Couplings 4" |
