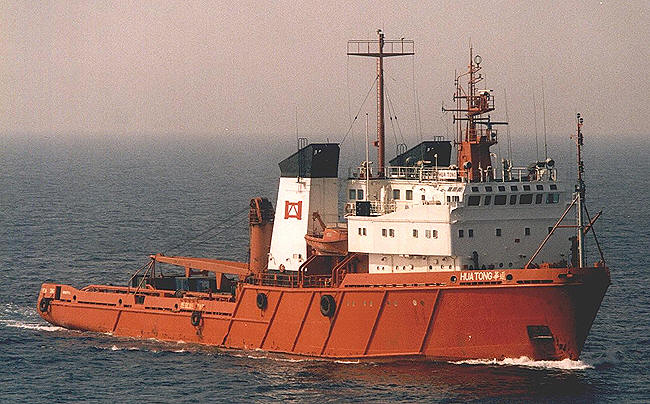

M/V HUA TONG |
|
7,200BHP AHTS |
| |
|
 |
|
|
|
|
REGISTRATION |
|
|
Flag: |
Liberia |
|
Registered Port: |
Monrovia |
|
Builder: |
STOCZNIA SZCZECINSKA, A.S. |
|
Year Built: |
1993 |
|
Classification: |
H CSA 5/5 offshore tug/supply ship Ice class B H CSM Aut-0 |
|
Call Sign: |
E L P Z 9 |
|
Hull Number: |
B92-II/222 |
|
Sailing Area: |
World-wide |
|
Official Number: |
9912 |
|
|
|
|
DIMENSIONS |
|
|
Length Overall: |
81.37 M |
|
Length Bp: |
71.45 M |
|
Breadth Moulded: |
15.96 M |
|
Depth Moulded: |
7.20 M |
|
Draft Summer: |
4.90 M |
|
Freeboard: |
2.0 M (In Summer Draft) |
|
|
|
|
TONNAGE |
|
|
Gross Tonnage: |
2723 Tons |
|
Net Tonnage: |
817 Tons |
|
Dead Weight: |
1750 Tons |
|
|
|
|
DECK CAPACITIES |
|
|
Deck Area (Clear): |
12 M x 40 M |
|
Crash Rail: |
1.80 M |
|
Deck Cargo: |
600 Tones |
|
Deck Strength: |
5 T/M2 |
|
|
|
|
DECK EQUIPMENT |
|
|
Anchor: |
3 x 2500KG |
|
Anchor Chain: |
Dia.40MM, 550M, 20 M/min. |
|
Windlass: |
Type: WKS4 |
|
Tugger: |
1 Sets on port side: Type UP50BP083, 5 Tons |
|
Capstan: |
2 Sets: UP50BP083, 5 Tons |
|
Hyd. Crane: |
Electro/hydraulic Crane, 5 tons 8 M; 2.5 tons ? 14 M. |
|
|
|
|
TANK CAPACITY |
|
|
P. Water: |
315 M3 |
|
D. Water: |
1040 M3 |
|
Fuel oil: |
650 M3 |
|
Bulk: |
164 M3 in 4 tanks |
|
Liquid Mud : |
Nil |
|
|
|
|
TRANSFER RATES |
|
|
P. Water: |
100 M3 /hr at 65 M
head |
|
D. Water: |
100 M3 /hr at 65 M
head |
|
Fuel Oil: |
70 M3/hr at 65 M
head |
|
Bulk: |
2 Sets Air compressors each 14 M3/min
at 0.35 MPA |
|
|
|
|
MACHINERY |
|
|
Main Engine: |
2 Sets, Sulzer 6ZL 40/48 |
|
Horse Power: |
2 x 3,600BHP, Total 7,200BHP |
|
Bollard Pull: |
89 Tons at 110% ME output (2 x 2920Kw) |
|
|
83 Tons at 100% ME output (2 x 2650Kw) |
|
Propeller: |
2 CPP Propellers in Kort Nozzles |
|
Auxiliary: |
3 Sets, Sulzer 6AL 20/24, 570HP each Replica Rolex Explorer
|
|
Generator: |
3 x 420KW, 420V/50 HZ/3 Phase |
|
|
1 x 90KW, 420V/50 HZ/3 Phase (Emergency) |
|
|
Total: 1350 KW |
|
Thrusters: |
2 Bow Thruster x 6.12 Tons each |
|
|
(2nd Bow Thruster
installed in Jan. 2001) Replica Rolex Deepsea Sea-Dweller
|
|
Control: |
C.P.P., control on bridge |
|
|
|
|
SPEED & CONSUMPTION |
|
|
Maximum: |
14.5 knots 15 Tons/day |
|
Economical: |
11.5 Knots 10 Tons/day |
|
Cruising: |
8 Knots |
|
In Port: |
0.7 Tons/day |
|
Range: |
30 days |
|
|
|
|
NAVIGATION/COMMUNICATION |
|
|
Gyro Compass: |
VEGA-M |
|
Magnetic Compass: |
CLEPAHO 52N-7 |
|
Auto Pilot: |
PZL |
|
Echo Sounder: |
PRNsOR 4 |
|
Radar: |
2 x NAYADA-5 HELPMATE |
|
Loran C: |
Nil |
|
Direction Finder: |
RHUMB |
|
Log: |
IEL-2M |
|
Facsimile: |
Nil |
|
Windicator: |
1 Set |
|
Satellite Navigation: |
SHIPMATE R8 5510 |
|
SSB: |
FURUNO |
|
VHF: |
1 Sailor Compact RT2048, 1x Raytheon Ray-80 |
|
Communication: |
Yes |
|
Receiver: |
R132 WATCH-KEEPING |
|
Portable VHF: |
3 x VHF Marine Radio Model: HX238S(EB) |
|
Navitex: |
Lo-KATA |
|
|
|
|
SAFETY EQUIPMENT |
|
|
Ring Buoy: |
8 |
|
Life Jacket: |
50 |
|
Life Raft: |
7 x 10 persons |
|
Life Boat: |
1 x Rescue boat, 6 persons; 1 x Life boat, 20 persons |
|
FiFi: |
2 fire fighting pump with 4 monitors on top of the bridge with 300M3/hr
capacity |
|
Antipollution: |
2 x Oil dispersant system; 1 boom on each side with 5 spray nozzles |
|
Emergency Radio: |
Yes |
|
Emergency Life Buoy Marker: |
Yes |
|
Radio Distress Transmitter: |
2 x RESCUER |
|
|
|
|
TOWING/ANCHOR HANDLING |
|
|
Winch: |
HD-150 A0101, SWL: 150 Tons |
|
Tow Line: |
Dia. 60 MM x 1000 M |
|
Anchor Handling Wire: |
Dia. 60 MM x 150 M |
|
Pennant: |
2 Sets: Dia. 60 MM x 20 M |
|
Towing Fairlead: |
Yes. |
|
Shackle: |
4 x 85 Tons; 6 x 55 Tons; 8 x 35 Tons |
|
Shark Jaw: |
Nil |
|
Towing Pins: |
SWL: 250 Tons |
|
Nylon Stretcher: |
2 x dia. 10" x 50 M |
|
Stern Roller: |
Dia. 1.83 M x 3.6 M |
|
|
|
|
PROVISION |
|
|
Freezer: |
Total: 40 M3 |
|
Refrigerator: |
2 Sets |
|
Accommodations: |
62 berths in total |
|
|
|
|
CONNECTIONS |
|
|
Bulk: |
WECO Couplings 4" |
|
Water: |
WECO Couplings 4" |
|
Fuel: |
WECO Couplings 4" |
