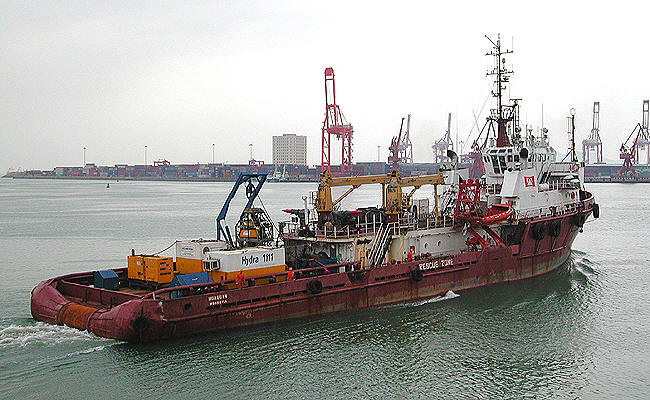

M/V HUA QUAN |
|
7,520BHP |
| |
|
 |
|
|
|
|
REGISTRATION |
|
|
Flag: |
Liberia |
|
Home Port: |
Monrovia |
|
Builder: |
Marystown Shipyard, Marystown, NFLD |
|
Year Built: |
1984 |
|
Classification: |
CCS *CSA 5/5 Offshore Tug/Supply Ship, Fire Fighter 1, Ici Class 3 CSM |
|
Call Sign: |
ELYP6 |
|
Official Number: |
11361 |
|
IMO Number: |
8222109 |
|
Imarsat C: |
463684562 |
|
Sailing Area: |
World-wide |
|
|
|
|
DIMENSIONS |
|
|
Length Overall: |
64.00 M |
|
Length P.P.: |
56.40 M |
|
Breadth Moulded: |
13.80 M |
|
Depth Moulded: |
6.9 M |
|
Draft Summer: |
6.0 M |
|
Displacement: |
2,952 Tons |
|
Freeboard: |
0.9 M (In Summer Draft) |
|
|
|
|
TONNAGE |
|
|
Gross Tonnage: |
1,546 Tons |
|
Net Tonnage: |
463 Tons |
|
Dead Weight: |
1,413 Tons |
|
|
|
|
DECK CAPACITIES |
|
|
Deck Area (Clear): |
11 M x 17 M = 187 M2 |
|
Crash Rail: |
1.7 M |
|
Deck Cargo: |
935 Tones |
|
Deck Strength: |
5 T/M2 |
|
|
|
|
DECK EQUIPMENT |
|
|
Anchor: |
0.9 Tons x 2 |
|
Anchor Chain: |
Dia. 34 MM, 508 M each x 2 |
|
Windlass: |
Hydraulic |
|
Tugger Winch: |
20 Tons (Elec.) |
|
Capstan: |
5 Tons x 2 (Hydraulic) |
|
Crane: |
Hydraulic, 5 Tons x 12 M x 2 |
|
Stern Roller: |
Dia. 1.83 M x 3.66 M, SWL 250 tons |
|
Towing Hook: |
60 Tons; Remote Control. |
|
|
|
|
TANK CAPACITY |
|
|
Fuel oil: |
831 M3 MGO |
|
P. Water: |
144.7 M3 |
|
Ballast/Drilling Water: Replica Rolex Explorer
|
730.27 M3
|
|
|
|
|
TRANSFER RATES |
|
|
Fuel Oil: |
109 M3/hr at 70 m
head |
|
P. Water: |
100 M3/hr at 60 m
head |
|
D. Water: |
100 M3/hr at 70 m
head |
|
|
|
|
MACHINERY |
|
|
Main Engine: |
Main B&W, Alpha Diesel x 2 set |
|
Type/Horse Power: |
14U28L-VO; 7,520BHP |
|
Propeller: |
2 x CPP Propellers in Kort Nozzles |
|
Auxiliary: |
2 sets: 2 x 400 BHP |
|
Generator: |
2 sets x 275kW |
|
Shaft Generator |
Type: MPM 500-21, out put 840 KVA x 2 |
|
Emergency Generator |
Type: ULSTEIN 90 TV-A, out put 7.5 KW x 1 |
|
Bow Thruster: |
500 BHP, 5 Tons |
|
Joy Stick |
ULSTEIN 6065 |
|
|
|
|
SPEED & CONSUMPTION |
|
|
Maximum: |
15.2 knots 23 Tons/day |
|
Economical: |
12.5 knots 12 Tons/day |
|
In Port: |
0.6 Tons/day |
|
|
|
|
NAVIGATION/COMMUNICATION |
|
|
Gyro Compass: |
1 x SPERRY MK37 |
|
Auto Pilot: |
1 x SPERRY |
|
Echo Sounder: |
1 x DECCA SPERRY |
|
Radar: |
1 x Sperry BM2; 1 x Decca Bridge Master MK127E |
|
Log: |
1 x SPERRY |
|
Satellite Navigation: |
1 x GPS RAYTHEON |
|
GMDSS: |
1 x LMS Programme 4000 console |
|
SSB: |
1 x SPERRY HC 4500 |
|
VHF: |
2 x Sailor RT144AC; 1 x Sperry RT4822 |
|
|
|
|
SAFETY EQUIPMENT |
|
|
Ring Buoys: |
10 |
|
Life Jackets:Breitling Aeromarine Replica Watches
|
100 |
|
Thermal Protective aids: |
60 |
|
Life Raft: |
8 x 20 persons + 2 x 10 persons |
|
Rescue Boat: |
1 x 6 persons, Engine 150 BHP |
|
Rescue Net: |
One rescue net on each side of the vessel. |
|
Anti-pollution: |
Oil Dispersant system: 1 boom on each side with 5 spray nozzles & one line
proportion capable of 700 L/Min./2600ms. |
|
|
1 x Seawater pump capable of 100 cu.m/h at 7 bars. |
|
Emergency Radio: |
1 x SKANTI TRP1 |
|
EPIRB |
1 x KANNAD 406WH |
|
|
|
|
FIRE FIGHTING EQUIPMENT |
|
|
Pump Capacity: |
FIFI I, 2 monitors x 1200 M3/hr,
total 2400 M3/hr.
|
|
Foam Mixture Capacity: |
80 M3/hr. |
|
Monitor: |
2 x 1200 M3/hr
with remote Joystick control |
|
|
|
|
PROVISION |
|
|
Accommodations: |
6 x Single Rooms, 11 x Double Bunk Rooms, 4 x 4 Bunk Rooms, 2 x 8 Bunk
Rooms. |
|
|
Total 60 beds. Full air-conditioning |
|
Galley Capacity: |
60 persons. |
