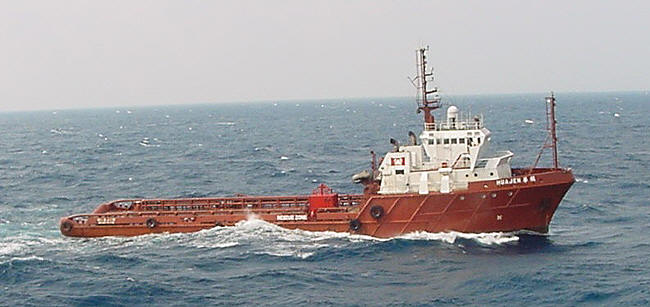

HUA JEN |
| |
|
 |
|
|
|
|
GENERAL |
|
|
Type |
UT-704 AH/T/Supply/Stand-by Vessel |
|
Classification |
DNV+1A1 EO-TUG SF/World wide |
|
Flag |
Liberia |
|
Builder |
ULSTEN HALTO A/S |
|
Year Built |
1981.7 |
|
Length |
64.40 m |
|
Breadth |
13.80 m |
|
Depth |
6.90 m |
|
Max. Draught |
4.70 m |
|
Max. Speed |
16 Knots |
|
Service Speed |
12 Knots |
|
|
|
|
LIQUID CAPACITIES |
|
|
Drilling Water |
650 m3 |
|
Potable Water |
254.9 m3 |
|
Cargo Fuel |
761 m3 |
|
Bulk Cargo |
4x 42 m3 |
|
Liquid Mud |
158.6 m3 |
|
Loading Capacity |
|
|
Cargo Deck Area |
38 m x 11 m = 481 m2 |
|
Deck Load Capacity |
750 M.T |
|
Deck Strength |
5 MT/m2 |
|
|
|
|
MACHINERY |
|
|
Main Engine |
|
|
Number of Engine & Type |
2x F 316V |
|
Builder |
NOHAB POLAR |
|
Brake Horse Power |
2x 4080 BHP |
|
Generator |
2x 800 KVA shaft generators |
|
|
2x 305 KVA scania vabis |
|
Bow Thruster |
1x 9.7 T |
|
Propeller |
C.C.P |
|
|
|
|
TOWING & ANCHOR HANDLING EQUIPMENT |
|
Towing/Anchor Handling/Winch |
Bratlvaag Type SL 180/B 35T Max. pull 180T |
|
Bollard Pull |
105T / 110T |
|
Stern Roller |
3660 mm x dia. 1830 mm |
|
Shark Jaw |
Karm Fork 500 SWL |
|
Towing Wire |
1,000 m x dia. 61 mm |
|
|
|
|
RADIO & NAVIGATION EQUIPMENT |
|
|
Radio & Navigation equipment |
1 Sailor SSB MF/HF Type T-1127/R-1117 |
|
|
400W/800W |
|
|
1 Spars Racolver Sailor R 109 Fm |
|
|
1 Sailor RT-143 Duplex VHF |
|
|
1 Sailor RT-144 Simplex VHF |
|
|
1 Portable SRA VHF Type PM 84 |
|
|
1 VHF emergency transmitter |
|
|
1 Delcom DC-300D |
|
|
2 Skanti Marinetta lifeboat transmitters Type TRP-1 |
|
|
|
|
ACCOMMODATION |
|
|
Crew |
12 |
|
Passenger |
12 |
