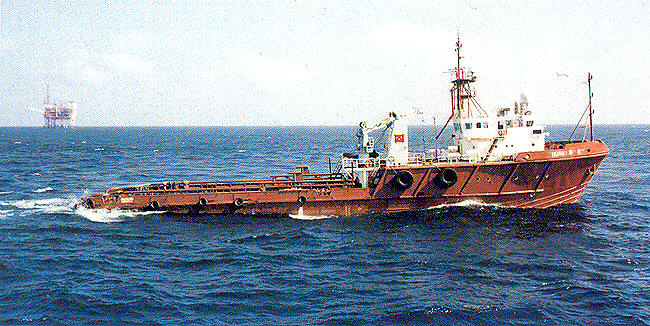

HUA HU |
| |
|
 |
|
|
|
|
GENERAL |
|
|
Type |
AH/T/Supply vessel |
|
Classification |
Lloyd's+100A1 off-shore Supply ship, ICE Class 3+LMC |
|
Flag |
Liberia |
|
Builder |
Astilleros Construcciones S.A. |
|
Year Built |
1982 |
|
Length |
60.20 m |
|
Breadth |
13.00 m |
|
Depth |
6.00 m |
|
Max. Draught |
4.80 m |
|
Max. Speed |
16 kts |
|
Service Speed |
12 kts |
|
|
|
|
LIQUID CAPACITY |
|
|
Drilling Water |
501.75 m3 |
|
Potable Water |
123.90 m3 |
|
Cargo Fuel |
607.55 m3 |
|
Bulk Cargo |
132.60 m3 in 4
tanks |
|
Liquid Mud |
nic |
|
Cargo Deck Area |
31 m x 11 m = 341 m2 |
|
Deck Load Capacity |
625 MT |
|
Load Bearing Capacity |
5 t/m2 |
|
|
|
|
MACHINERY |
|
|
Type |
2x 16A 5V 25/30 1000rpm |
|
Builder |
Sulzer Brothers Ltd |
|
Brake Horse Power |
8640 BHP |
|
Generator |
1100 KVA |
|
Bow Thruster |
4.40 T (Thrust) |
|
Propeller |
2 CCP |
|
Pressure Rate of Bulk Compressor |
80 p.s.i. - 5.4 kg/cm2 |
|
Replica Rolex Deepsea Sea-Dweller
|
|
|
TOWING & ANCHOR HANDLING EQUIPMENT |
|
Anchor Handling/Towing Winch |
1 set x CARRAL CH 3400 |
|
|
Pull: 150T |
|
|
Brake Pull: 250T |
|
Bollard Pull |
84T |
|
Stern Roller Dimensions |
Length 3 m x Dia. 1.50 m |
|
Shark Jaw |
440T |
|
Towing Wire |
1150 m, dia. 64 mm |
|
Spare Towing Wire Replica Audemars Piguet Royal Oak Offshore Diver
|
1000 m, dia. 62 mm |
|
|
|
|
RADIO & NAVIGATION EQUIPMENT |
|
|
Radio |
|
|
Single Side Band |
1 set x Skanti 8000 |
|
VHF |
2 sets |
|
Gyro |
2 sets x Tokyo Keiki |
|
Autopilot |
1 set x B.C. - MK |
|
Depth Sounder |
1 set x H.R.M. |
|
|
|
|
FI-FI EQUIPMENT |
|
|
Diesel Motor |
Campoon D 1700 |
|
Monitor |
2 sets x 145 m3/h |
|
|
|
|
ACCOMMODATION |
|
|
Crew |
14 |
|
Passenger |
6 |
