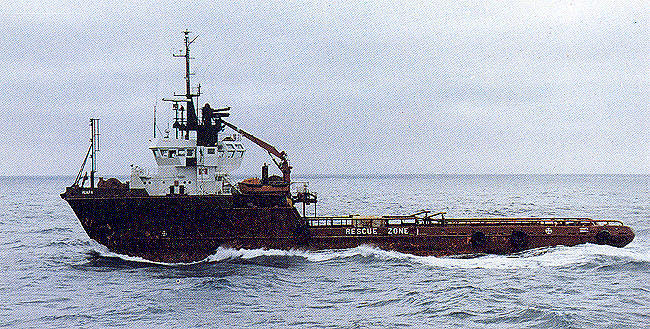

HUA FA |
| |
|
 |
|
|
|
|
GENERAL |
|
|
Type |
Multi-purpose vessel |
|
|
AH/T/S,DP,FIFI II, DVS, Stand-by Rescue |
|
Classification |
DNV+1A1 Tug and Supply Vessel |
|
|
SF and Fire Fighter II and DYNPOS EO ICE-C |
|
Flag |
Liberia |
|
Builder |
Bols f nes Verft. Molde,
Norway |
|
Year Built |
1982 |
|
Length |
69.10 m |
|
Breadth |
15.00 m |
|
Depth |
7.20 m |
|
Draught Summer |
6.10 m |
|
Max. speed with 4 engines |
15.50 KTs |
|
Cruising speed with 1 engine |
11.50 KTs |
|
|
|
|
LIQUID CAPACITIES |
|
|
Drilling/Ballast Water |
686 m3 |
|
Potable Water |
534 m3 |
|
Fuel Oil |
825 m3 |
|
Dry Bulk 4 Tanks |
7600 ft3 |
|
Deck Load Capacity |
960T |
|
Cleardeck Space L. x B. |
40 m x 12 m |
|
Cargo Deck Load |
5 t/m2 |
|
|
|
|
MACHINERY |
|
|
Main Engine |
|
|
Number of Engine & Type |
4 sets MAK Type 8M 453AK |
|
Brake Horse Power |
12,800 BHP |
|
Electric Generator |
3x 226 KVA |
|
Thruster [Bow], Thruster [Stern] |
2x 815 BP [Bow], 1x 600 HP [Stern] |
|
Propeller |
2 C.C.P |
|
|
|
|
TOWING & ANCHOR HANDLING EQUIPMENT |
|
Towing/Anchor Handling Winch |
Hydraulic brattraag |
|
|
Towing wire 1,200 m x dia. 64 mm |
|
|
Anchor handling wire 1,000 m x dia. 55 mm |
|
Brake Power |
300T (towing), 400T (anchor handling) |
|
Bollard Pull |
150.00 T |
|
Stern Roller |
3.65 m (L) x 2.40 m (Dia.) |
|
Max. Static Load |
580 T |
|
|
|
|
FI-FI EQUIPMENT (FIFI II) |
|
|
Pump |
2x 3,600 m3/h head
155 m |
|
Monitors |
Height 70 m (4 sets) |
|
|
|
|
RADIO & NAVIGATION EQUIPMENT |
|
|
Communication Equipment |
3 VHF sets |
|
|
Radio telephone |
|
|
SSB |
|
|
VHF emergency transmitter |
|
|
Radio beacon |
|
|
1 watch receiver |
|
|
Lifeboat emergency transmitter |
|
Gyro Compass |
1 set |
|
Radio Direction Finder |
1 set |
|
Radar |
|
|
Dacca Navigator |
1 set |
|
Speed Log |
1 set |
|
Autopilot |
1 set |
|
|
|
|
ACCOMMODATION |
|
|
Bunk |
50 persons |
|
Room for Survivors |
150 persons |
