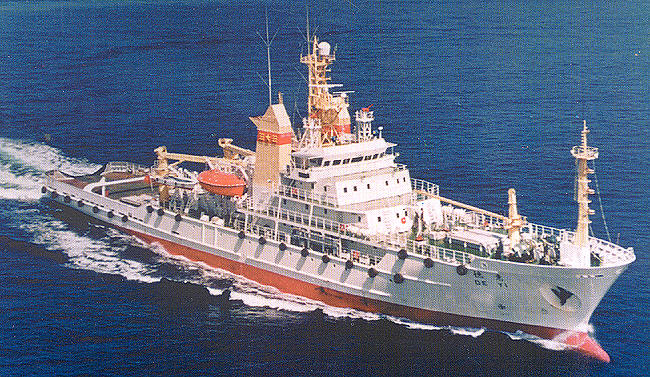

M/V DE YI |
|
10,640BHP 122TON BP |
| |
|
 |
|
|
|
|
REGISTRATION |
|
|
Flag: |
China |
|
Home Port: |
Shanghai |
|
Year Built: |
1990 in Japan |
|
Classification |
CCS |
|
Call Sign: |
B S CC |
|
Inmarsat-C Number: |
341264810 / 341264812 |
|
Sailing Area: |
World-wide |
|
|
|
|
DIMENSIONS |
|
|
Length Overall: |
95.00 M |
|
Length BP: |
85.00 M |
|
Breadth Moulded: |
15.20 M |
|
Depth Moulded: |
7.50 M |
|
Design Draught : |
6.50 M |
|
|
|
|
TONNAGE |
|
|
Gross Tonnage: |
3128 Tons |
|
Net Tonnage: |
938 Tons |
|
Dead Weight: |
2,400 Tons |
|
|
|
|
DECK EQUIPMENT |
|
|
Anchor: |
2 x Stockless Anchors 2640KG, 1 x spare anchor |
|
Windlass: |
2 x 13 tons Electrical |
|
Tugger winch: |
2 x 10 tons each, Hydraulic |
|
Capstan: |
1 x 10 tons each, Hydraulic |
|
Hyd. Crane: |
2 sets 10/2 Tons x 12.3 / 17.8 M |
|
|
|
|
TANK CAPACITY |
|
|
P. Water: |
354 M3 |
|
D. Water: |
339 M3 |
|
Fuel: |
1580 M3 |
|
MGO: |
212 M3
|
|
|
|
|
MACHINERY |
|
|
Main Engine: |
HITACHI B&W7L35mc 5320ps X 200rpm x 2 sets (10,640BHP) |
|
Bollard Pull: |
Max. 122 T |
|
Propeller: |
Kawasaki-Escher CPP Propellers in Kort Nozzles |
|
Aux. Engine: |
Daihatsu – 6DLB –19 500KVA x 390V x 50 HZ x 3sets |
|
Thrusters: |
1 Bow Thrusters 5 tons electric motor driven |
|
Speed: |
17 Knots at 33.5 Tons/24 hrs |
|
|
|
|
TOWING/ANCHOR HANDLING |
|
|
Winch: |
130T x 9M/min double drums |
|
Tow Line: |
Diam. 66MM x 1200M |
|
Shark Jaw: |
Yes |
|
Towing Pins: |
170 T Pull |
|
Wire Stopper: |
500T SWL |
|
Stern Roller: |
5.4M x Dia. 1.85M |
|
|
|
|
FIRE FIGHTING (FFI) CCs |
|
|
Fire Pump Capacity: |
2 x 240 M3/hr x
130 M |
|
Monitors: |
1 x 45M3/hrs 1 x
40M3/hrs |
|
|
|
|
ACCOMMODATION |
|
|
Crew Quarters: |
25 berth |
|
Passenger Berth: |
15 berth |
|
Total Berths: |
40, All fully air-conditioned |
