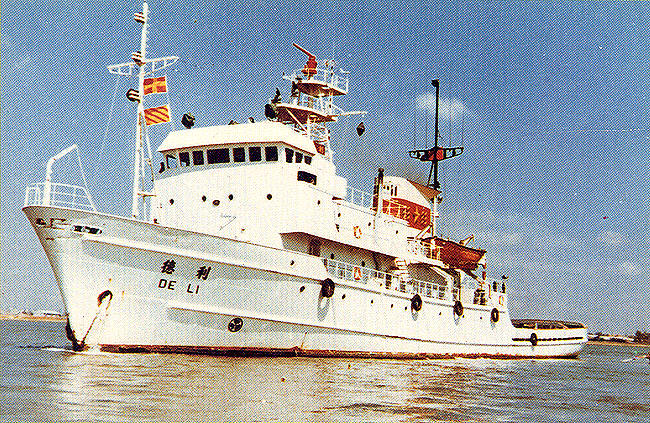

DE LI |
|
OCEAN SALVAGE TUG |
| |
|
 |
|
|
|
|
PRINCIPAL PARTICULAR |
|
|
Classification |
* CSA 5/5 Tug, Ice Class B3, * CSM |
|
Year Built |
1979 |
|
Where Built |
Hong Kong |
|
Port of Registry |
Guangzhou |
|
Length O.A. |
66.40 m |
|
Length B.P. |
60.00 m |
|
Breadth Molded |
12.00 m |
|
Depth Molded |
5.80 m |
|
Full Load Draft |
Fore 3.546/Aft. 5.44 m |
|
Full Load Displacement |
1940t |
|
Light Displacement |
1255t |
|
ross Tonnage |
1389t |
|
Net Tonnage |
416t |
|
Max. Speed |
16.50 kn |
|
Ballard Pull |
60t |
|
Range |
7500 n mile 20d |
|
Accommodation |
42 |
|
M.E. Consumption |
211 g/kw.h |
|
|
|
|
MACHINERY & EQUIPMENT |
|
|
Diesel Main Engine |
2x 2206kw x 400 r.p.m. |
|
Propeller |
2x C.P.P |
|
Bow Thruster |
1x 200kw |
|
Generator |
3x 240kw AC385V |
|
Towing Winch |
25/50/50t x 14/7/2.9m/min |
|
Towing Hook |
1x 50t |
|
Towing Wire |
1x f 60mm x 1000m |
|
Windlass |
1x 7t x 9 m/min |
|
Anchor |
2x 1505 kg |
|
Spare Anchor |
1x 1505 kg |
|
Steering Gear |
2x 3.7 kw |
|
Capstan |
1x 2.5/5.0t x 26/13m/min |
|
Crane |
1x 10t |
|
Submersible Pump |
1 x 0.45/0.9 m3/min
x 45/30m |
|
Fire Pump |
1x 270 m3/h x 26m |
|
|
2x 110/50m3/h x
20/60m |
|
|
1x 30m3/h x 55m |
|
Foam/Water Monitor |
1 x 4000 l/min x 12 kg/cm2 |
|
Salvage Air Compressor |
1 set |
|
|
|
|
TANK CAPACITY |
|
|
Ballast Water |
225.5t |
|
Fresh Water |
150t |
|
Fuel Oil |
455.8t |
|
Foam tank |
5 m3 |
