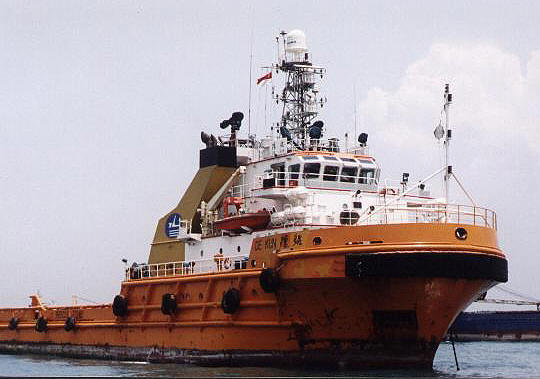

M/V DE KUN |
|
8000BHP AHTS |
| |
|
|
|
|
|
|
|
REGISTRATION |
|
|
Flag: |
China |
|
Home Port: |
Guangzhou, China |
|
Builder: |
Shanghai Dong Hai Shipyard, Shanghai, China |
|
Year Built: |
Mar-01 |
|
Classification |
* CSA 5/5 Tug, Offshore Supply Ship, Rescue Ship, Fire Fighting I, Ice
Class B |
|
Inmarsat-C Number: |
|
|
Sailing Area: |
World-wide |
|
|
|
|
DIMENSIONS |
|
|
Length Overall: |
65.60 M |
|
Breadth Moulded: |
14.00 M |
|
Depth Moulded: |
6.90 M |
|
Draught Loaded (Full): |
5.30 M |
|
|
|
|
TONNAGE |
|
|
Gross Tonnage: |
1720 Tons |
|
Net Tonnage: |
516 Tons |
|
Dead Weight: |
1204.08 Tons |
|
|
|
|
DECK CAPACITIES |
|
|
Deck Area (Clear): |
345 M2 (31.8 x
11.0 m) |
|
Deck Cargo: |
500 M/T |
|
Deck Strength: |
5 T/M2 |
|
|
|
|
DECK EQUIPMENT |
|
|
Anchor: |
2 x Stockless Anchors 2100KG, 1 x spare anchor |
|
Anchor Chain: |
Dia. 36mm x 547.56 m x 2 |
|
Windlass: |
2 x 8 tons Hydraulic, KITAGAWA KOGYO |
|
Tugger winch: |
2 x 12 tons each, KITAGAWA KOGYO |
|
Capstan: |
2 x 12 tons each, KITAGAWA KOGYO |
|
Hyd. Crane |
1 x 3.7 tons/13.5M |
|
Joystick: |
Lipstick |
|
|
|
|
TANK CAPACITY |
|
|
P. Water: |
353.6 M3 |
|
D. Water: |
410.9 M3 |
|
Fuel: |
660.94 M3 |
|
Bulk: |
Total: 168 M3 in 4
tanks |
|
Mud Tank: |
268.8 M3 |
|
|
|
|
TRANSFER RATES |
|
|
P. Water: |
100 MT/hr at 8m head |
|
D. Water: |
100 MT/hr at 8m head Replica Rolex Deepsea Sea-Dweller
|
|
Fuel Oil: |
94 MT/hr at 8m head |
|
Bulk: |
50 MT/hr at 16m head |
|
Liquid Mud: |
70 MT/hr at 8m head |
|
|
Replica Rolex Explorer
|
|
MACHINERY |
|
|
Main Engine: |
DEUTZ TBD645L6 2 x 3940 BHP |
|
|
Total: 7880 BHP |
|
Bollard Pull: |
Max. 91T |
|
Propeller: |
Lips 2 CPP Propellers |
|
|
Twin Rudders |
|
Generator: |
TBD 616V8, 2 sets 370KW x 750 rpm/min |
|
Shaft Generator: |
Semens-TFC2, 2 sets 800KW x 800 rpm/min |
|
Thrusters: |
1 Bow Thrusters KAWASAKI KT88B 8T x 775BHP |
|
|
1 Stern Thruster KAWASAKI KT55B 6.1T x 530 BHP |
|
|
|
|
SPEED & CONSUMPTION |
|
|
Maximum: |
16 Knots, 26 Tons/24 hrs |
|
Economical: |
14 Knots, 21 Tons/24 hrs |
|
Standby: |
11 Tons/24 hours |
|
|
|
|
TOWING/ANCHOR HANDLING |
|
|
Winch: |
KITAGAWA Hydraulic 160T Waterfall double Drum |
|
Tow Line: |
Diam. 67MM x 1000M |
|
Towing Brake: |
Breaking 240 tons |
|
Work wire: |
1 x 612M (Dia.67mm). Two main tow wire can be used as the work wire if
necessary. |
|
Shark Jaw: |
440 MT SWL, Wire Dia.50-85/Chain Dia.50-102mm |
|
Towing Pins: |
Yes |
|
Stern Roller: |
5400 M/M x Dia. 1800M/M |
|
|
|
|
NAVIGATION/COMMUNICATION |
|
|
Gyro Compass: |
Standard-20 Anschutz |
|
Auto Pilot: |
Raytheon 105105NG005 |
|
Echo Sounder: |
SKIPPER ED-162 |
|
Radar: |
2 x FURUNO FR2125 |
|
Log: |
SSSRI MCDL-1 |
|
Inmarsat-C |
FURUNO FELCOM 12 |
|
Satellite Navigator: |
Yes |
|
GPS: |
FURUNO GP80 x 2 |
|
SSB Radio: |
FURUNO FS-8000 |
|
Emergency Radio: |
Yes |
|
VHF: |
2 x FURUNO FM-8500 |
|
MF/HF DSC terminal: |
FURUNO DSC-60 |
|
Portable VHF: |
|
|
|
|
|
SAFETY EQUIPMENT |
|
|
Ring Buoy: |
10 |
|
Life Jacket: |
42 |
|
Life Raft: |
6 x 15 persons |
|
Life Boat: |
2 |
|
Rescue Zones |
on both port & starboard side. |
|
|
|
|
FIRE FIGHTING (FFI) CCs |
|
|
Fire Pump Capacity: |
2 x 1200 M3/hr
|
|
|
120 Throw: 50 M Height with external drenching system |
|
Monitors: |
2 x 1200M3/hr
Remote Control |
|
Foam Monitor |
1 x 16 M3/hr |
|
Dispersant Tank |
9.798 M3 |
|
|
|
|
ACCOMMODATION |
|
|
Crew Quarters: |
20 berth |
|
Passenger Berth: |
16 berth |
|
Total Berths: |
36, All fully air-conditioned |
|
Galley Capacity: |
100 persons |
|
|
|
|
MISCELLANEOUS |
|
|
Fitted with Poscon Electric Control System Joystick. Intergrated to main
propellers, rudders, side-thrusters and gyro compass. |
|
Hose Connectors: |
Fuel Oil 5 inches |
|
|
Potable Water 5 inches |
|
|
Drilling Water 5 inches |
|
|
Bulk 5 inches |
