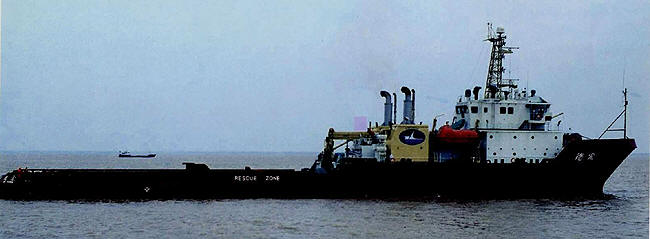

M/V DE HONG |
|
15680BHP OCEAN TUG |
| |
|
 |
|
|
|
|
REGISTRATION |
|
|
Flag: |
China |
|
Home Port: |
Shanghai |
|
Builder: |
Donghai Shipyard, Shanghai |
|
Year Built: |
2000.7. |
|
Classification |
CSA 5/5 TUG OTS RCS |
|
|
ORS FF1 ICB2 |
|
|
CSM AUT-0 |
|
Call Sign: |
BSCE |
|
Sailing Area: |
World-wide |
|
Official Number: |
00N3002 |
|
|
|
|
DIMENSIONS |
|
|
Length Overall: |
96.37 M |
|
Length BP: |
84.00 M |
|
Breadth Moulded: |
16.40 M |
|
Depth Moulded: |
8.40 M |
|
Design Draught : |
6.50 M |
|
Draught Loaded (Full): |
6.93 M |
|
Displacement (Summer Draught): |
5996.5 Tons |
|
|
|
|
TONNAGE |
|
|
Gross Tonnage: |
3193 Tons |
|
Net Tonnage: |
957 Tons |
|
|
|
|
DECK CAPACITIES |
|
|
Deck Area (Clear): |
500 M2 |
|
Crash Rail: |
Hight:1.5M |
|
Deck Cargo: |
850 M/T |
|
Deck Strength: |
5 T/M2 |
|
|
|
|
DECK EQUIPMENT |
|
|
Anchor: |
2 x Speke anchors, 2640 kg each, plus 1 spare anchor on board |
|
Anchor Chain: |
Dia.: 44 mm AM3 |
|
Windlass: |
1 x 13.27tons, Hydraulic |
|
Tugger winch: |
2 x 10 tons each, Hydraulic |
|
Capstan: |
2 x 10 tons each, Hydraulic |
|
Hyd. Crane: |
1 x (5-10) tons /(8-14)M, 2.5 tons/18M |
|
|
Telescope arm Joystick: KAWASAKI KICS ? 1000/ 1122 ? CCCN |
|
|
|
|
TANK CAPACITY |
|
|
P. Water: |
390.84 M3 |
|
D. Water: |
778.54 M3 |
|
F.O.: |
2079.23 M3 |
|
D.O.: |
363.76 M3 |
|
Bulk: |
Nil |
|
Liquid Mud: |
Nil |
|
All liquid tank fitted with the level monitor and alarm device |
|
|
|
|
TRANSFER RATES |
|
|
P. Water: |
8.0 Bar 100 M3 /hr |
|
D. Water: |
8.0 Bar 100 M3 /hr |
|
Fuel Oil: |
8.0 Bar 100 M3 /hr |
|
Bulk: |
N/A |
|
Liquid Mud: |
N/A |
|
|
|
|
MACHINERY |
|
|
Main Engine: |
Kawasaki ? MAN B&W 8L40/ 54 Replica Rolex Deepsea Sea-Dweller |
|
|
2 x 7840BHP 520r/min, Total: 15680BHP |
|
Main Engine Air Compressor: |
2 x 80 M3 /hr x
30bar |
|
Propeller: |
2 x Kawasaki CPP Propellers in Kort Nozzles |
|
Rudders/Steering gear: |
2 x streamlined semi-balanced hanging rudders |
|
|
2 x Ulstein Tenfiord electric hydraulic steering gear |
|
Generator: |
2 x 700KVA, 400 V, 3- phase, 50 Hz |
|
Aux. Engine: |
2 x Daihatsu 6DK-20 x 610KW |
|
Shaft Generator: |
2 x 1600KVA, 400 V, 3- phase, 50 Hz |
|
Thrusters: |
1 Bow Thruster x 660KW, thrust 10 Tons |
|
|
1 Stern Thruster x 490KW, thrust 8 Tons |
|
Control: |
Joystick: KAWASAKI KICS ? 1000/1122 - CCCN |
|
|
|
|
SPEED & CONSUMPTION |
|
|
Maximum: |
20 Knots , 50 Tons/24 hrs |
|
Economical: |
13 Knots, 25 Tons/24 hrs |
|
Towing: |
Max.: 45 Tons/24 hrs |
|
Navigation |
18 Knots, 45 Tons/24 hrs |
|
|
|
|
TOWING/ANCHOR HANDLING |
|
|
Bollard Pull: |
185 T |
|
Winch: |
250T 2 Drums |
|
Tow Line: |
Dia.:75mm , 3 x 1500M |
|
Towing Brake |
Brake holding on 1st layer ? 400 tons |
|
Anchor Handling: |
1 x clutchable drum, Capacity: Dia.75MM x 1500M |
|
|
Wire, 2 x decluchable Cable Lifters, one for 3.25? Chain starboard and one
for 4? chain port, fitted outside of the anchor handling drum |
|
Chain Locker: |
1 x chain locker, 93 Cu. m |
|
Storage Drum: |
one storage drum, 10 T, Capacity: 1500M x 75MM Dia. Wire |
|
Rig Chain Gypsies: |
1 x 3.25??, 1 x 4??, SWL:100 T |
|
Shark Jaw: |
2 OFF, Retractable 500 Tons SWL |
|
|
Remote control from wheelhouse and on aft deck |
|
Towing Pins: |
2 OFF, Retractable 350mm |
|
Stern Roller |
4.4M x Dia. 1.8M, 300T SWL |
|
|
|
|
NAVIGATION/COMMUNICATION |
|
|
Gyro Compass: |
1 x ANSCHUTE STANDARD 20 PLUS (GM) |
|
Auto Pilot: |
1 x ANSCHUTE PILOTSTAR-D |
|
Echo Sounder: |
1 x SKIPPER ED - 162 |
|
Radar: |
1 x ARPA Radar : JRC JMA ? 9723 CA-9CA con |
|
|
1 x Radar JRC JMA ? 9252- 9 |
|
Log: |
1 x MCDL-1 |
|
Weather Fax: |
1 x JRC JAX-9A |
|
Satcom : |
1 x Inmarsat ? B JUE ? 310B with high speed fax |
|
|
1 x Inmarsat ? C JUE ? 75C |
|
DGPS: |
2 x JRC JLR ? 7700 |
|
Radio Equipment: |
1 x JRC JSS ? 710 (800W) with DSC Replica Audemars Piguet Royal Oak Offshore Diver
|
|
VHF: |
2 x JHS ? 32A with DSC |
|
VHF FM two-way: |
3 x JHS-7 |
|
Navtex: |
1 x NCR-300A |
|
Digital Navigation Chart : |
JRC JAN - 1290 |
|
Search Light: |
Fitted with 2 search lights on top of wheelhouse |
|
Fitted with 2 remote cameras on deck and in winch house for anchor
handling/towing operation with TV monitors in wheelhouse. |
|
|
|
|
SAFETY EQUIPMENT |
|
|
Ring Buoy: |
10 |
|
Life Jacket: |
94 |
|
Life Raft: |
4 x 20 persons |
|
Life Boat: |
2 |
|
Rescue Boats: |
1 x reflatable rubber boat with outboard engine |
|
Rescue Net: |
Main deck with Scrambling net. |
|
Rescue Zones |
on both port & starboard side |
|
Hospital: |
1 |
|
Radar Transponder: |
2 |
|
|
|
|
FIRE FIGHTING (FFI) |
|
|
Fire Pump Capacity: |
3400 M3/hr, 120 M
throw, drenching system FIFI 1 |
|
Monitors: |
2 x 1200 M3/hr,
Controlled from inside wheelhouse |
|
Foam Monitor |
|
|
Dispersant Tank |
3.03 M3 |
|
Spray boom: |
2 x 3.5M |
|
|
|
|
ACCOMMODATION |
|
|
Quarters: |
12 x 1 berth, 8 x 2 berth + 1 x 8 berth |
|
Hospital |
1 |
|
Total Berths: |
36, All fully air condition |
