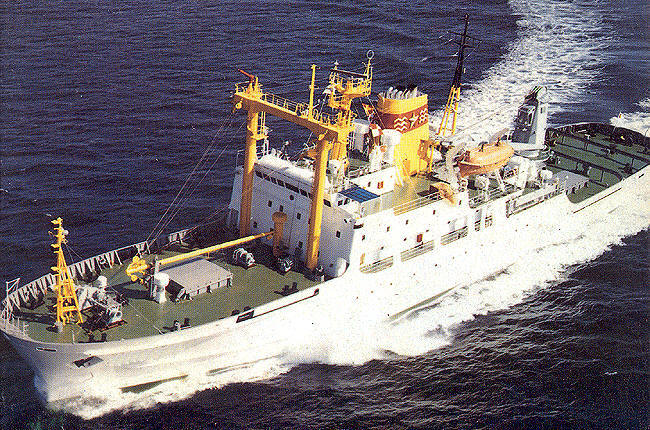

DE DA |
|
OCEAN SALVAGE TUG |
| |
|
 |
|
|
|
|
PRINCIPAL PARTICULAR |
|
|
Classification |
* CSA5/5 Salvage Tug, Ice Class B |
|
|
* CSM |
|
Year Built |
1979 |
|
Where Built |
Japan |
|
Port of Registry |
Shanghai |
|
Length O.A. |
98 m |
|
Length B.P. |
90 m |
|
Breadth Molded |
15.8 m |
|
Depth Molded |
8 m |
|
Full Load Draft |
Fore 6.44 m/Aft. 6.94 m |
|
Full Load Displacement |
6292 t |
|
Light Displacement |
3245 t |
|
Gorss Tonnage |
3883 t |
|
Net Tonnage |
1164 t |
|
Max. Speed |
21.47 kn |
|
Bollard Pull |
200 t |
|
Range |
14600 n mile 31d |
|
Accommodation |
57 |
|
M.E. Consumption |
200 ?4% g/kw.h |
|
|
|
|
MACHINERY & EQUIPMENT |
|
|
Diesel Main Engine |
2x 7758kw x 520 r.p.m |
|
Propeller |
2 sets x C.P.P |
|
Bow Thruster |
1x 460 HP |
|
Diesel Generator |
3 x 660kw, AC 390V, 50Hz |
|
Emergency Generator |
1x 80kw |
|
Towing Winch |
1x 80t x 11 m/min |
|
Towing Hook |
1x 70t |
|
Towing Wire |
1x f 76 mm x 1500 m |
|
Windlass Replica Rolex Deepsea Sea-Dweller
|
1x 15t x 9 m/min |
|
Anchor |
2x 2640 kg |
|
Spare Anchor |
1x 2640 kg |
|
Electro-Hyd. Steering Gear |
2 sets x C.P.P |
|
Crane |
1x 25t x 360o |
|
Derrick Boom |
1x 10t |
|
Electric Submersible Pump |
6 x 60t/h |
|
Fire & Bilge Pump |
1x 120/60m3/h x
30/60m |
|
Fire & G.S. Pump Replica Audemars Piguet Royal Oak Offshore Diver
|
1x 200/60m3/h x
30/60m |
|
Fire Pump |
2x 500 m3/h x 140
m |
|
Foam/Water Monitor |
2x 8000 l/min x 10 kg/cm2 |
|
Welder |
1x 16 kw. 2x 7 kw |
|
Salvage Air Compressor |
1x 20 kg/cm2, 1x 7 kg/cm2 |
|
|
|
|
TANK CAPACITY |
|
|
heavy Oil |
2556t |
|
Diesel Oil |
137t |
|
Fresh Water |
309t |
|
Ballast Water |
1368t |
|
Foam |
62.7t |
|
Disp. Med. |
6.90t |
