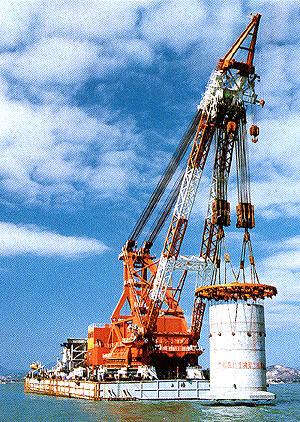

DA LI HAO |
|
2500 TONS FLOATING CRANE |
| |
|
|
|
|
|
|
|
PRINCIPAL PARTICULAR |
|
|
Built |
1980, Ishikawajima-Harima Heavy Industries Co. Ltd, Japan |
|
Class |
NK |
|
Flag |
China |
|
Length (Moulded) |
100.00 m |
|
Breadth (Moulded) |
38.00 m |
|
Depth (Moulded) |
9.00 m |
|
Draught |
5.20 m |
|
Navigation Draft |
3.70 m |
|
Gross Tonnage |
10027 T |
|
Net Tonnage |
8422 T |
|
Complement |
60 persons Replica Audemars Piguet Royal Oak Offshore Diver
|
|
|
|
|
GENERATOR |
|
|
Main Generator |
2 sets x AC 1200 KW x 600V x 50Hz |
|
Diesel Engine |
2 sets x 1800 BHP x 750 rpm |
|
Aux. Generator |
2 sets x AC 300 KW x 380V x 50Hz |
|
Diesel Engine |
2 sets x 470 BHP x 1000 rpm |
|
|
|
|
PROPELLING MACHINERY |
|
|
Type |
2 sets x IHI Duckpeller DP - 25 |
|
Each Max. Cont. Input & Revolution |
1000 ps x 750 rpm |
|
Propeller |
4 - bladed kaplan type with krot nozzle, Dia. 1710 mm |
|
Diesel Engine |
1000 BHP x 750 rpm |
|
Rate Speed |
5 kts |
|
|
|
|

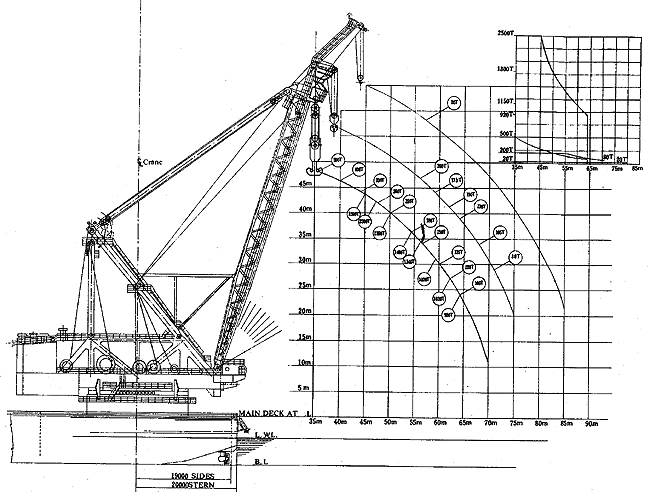

CRANE |
|
|
Main Hoist |
|
|
Main Hoist |
Load 2500 T at fixed condition at jib aft |
|
|
Load 500 T at full revolving condition Replica Zenith Watches
|
|
Max. Load Working Radius |
2500 T x 35 m - 45 m (fixed) |
|
|
500 T x 35 m (revolving) |
|
Max. Working Radius |
920 T x 64 m (fixed) |
|
|
100 T x 64 m (revolving) |
|
Lift |
66 m (total) |
|
Speed (Average) |
3 m/min (0 - 500 T) |
|
|
1.5 m/min (500 - 2500 T) |
|
Aux. Hoist |
|
|
Aux. Hoist |
Load 200 T at full revolving |
|
Max. Load Working Radius |
200 T x 39.1 m - 56 m |
|
Max. Working Radius |
80 T x 70.8 m |
|
Lift |
122 m (total) |
|
Speed (Average) |
9 m/min |
|
Whip |
|
|
Whip |
Load 20 T at full revolving |
|
Max. Working Radius |
20 T x 80 m |
|
Lift |
80 m (total) |
|
Speed (Average) |
25 m/min |
|
Motor |
|
|
Hoisting |
500 KW x 2 main and aux |
|
|
1 x 100 KW whip |
|
Derricking |
1 x 750 KW |
|
Slewing |
4 x 100 KW |
|
Control |
SCR. Leonard Control |
|
Power Supply |
AC 600V 50Hz |
|
Grab, Bucket |
|
|
Self Weight |
110 T |
|
Capacity |
About 11 m3 |
|
Operation |
By aux. hoist |
|
|
|
|
DECK MACHINERY |
|
|
Windless |
2 sets x Hydraulic motor driven with one chain sprockot |
|
Capacity |
22 T x 9 m/min for Dia. 70 mm chain cable |
